Product Description
VNCI J2534 Nano VNCI (Vehicle Network Communication Interface) is a device that works between diagnostic software and vehicle. It is compatible with J2534 Passthru and ELM327.

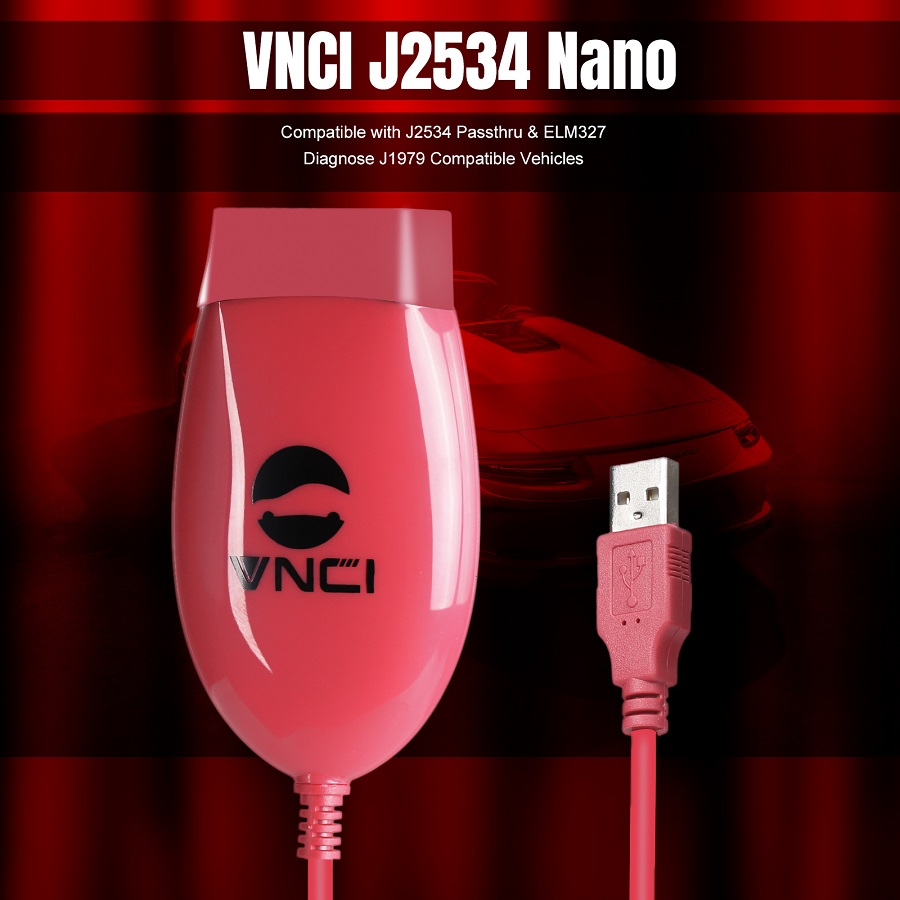

VNCI J2534 Nano Compatible with J2534 Passthru & ELM327 Diagnose J1979 Compatible Vehicles Switch Mode Automatically
VNCI (Vehicle Network Communication Interface) is a device that works between diagnostic software and vehicle. It is compatible with J2534 Passthru and ELM327.
Product Functions:
1. Support most all of J2534 compatible software(HDS, TIS, ODIS, JLR SDD, PCMFLash...).
2. Support most all of ELM327 software(ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.
5. Support Windows 8/10/11, 32/64bit
6. Supported languages:
ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese
Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
jlr sdd: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
pcmflash: English, Russian
Note for pcmflash 1.20: Customers need to buy a dongle (pcmtuner dongle sku: se157-s), and only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.
Product Highlights:
1. Support J2534 and ELM327 mode in one device. Switch mode automatically.
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
VNCI J2534 Nano protocol configuration:
1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.5a
VNCI J2534 Nano hardware configuration:
1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC
10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0
VNCI NANO J2534 Function List:
| Software |
Brand |
Year |
NOTE |
| Toyota TIS Techstream |
Toyota, Lexus |
1995-2022 |
Free download and activate software, update by link |
| Honda HDS 3.102 |
Honda Acura |
1995-2022 |
Does not support non-#7 K-line, update by link |
| ODIS-S, ODIS -E |
VW Audi Skoda Seat |
1995-2022 |
For J2534 VAG only. Don’t support CAN FD protocol, Don’t support Ignition switch voltage detection |
| Forscan 2.3.48 |
Ford Mazda Lincoln |
1996-2022 |
Cannot do 3, 11 medium speed CAN |
| Scanmaster V2.0 |
|
1996-2022 |
Free download and activate software |
| PCMFlash V1.2.0 |
67 modules |
1996-2022 |
Yes, test by your side |
| J1979Tester |
|
1996-2022 |
Free Honda immo code calculation |
| ELMConfig |
|
1996-2022 |
Yes, test by your side |
| Volvo VI-DA |
Volvo |
1996-2022 |
Yes, test by your side |
| JLR SDD2 |
Jaguar Land rover |
2006-2016 |
Yes, test by your side |
| GDS2 |
GM Buick Cadilac Chevlert |
1995-2022 |
Yes, test by your side |
| Xentry Passthru |
Benz, Smart |
1995-2022 |
Yes, test by your side |
| ISTA-D, ISTA-P |
BMW, Mini |
1995-2022 |
Yes, test by your side |
| Consult III-R2R |
Nissan, Infiniti |
1995-2022 |
Yes, test by your side |
Package Includes:
1pc x VNCI J2534 Nano
Shipping Method and Delivery Time:
1. UK & Czech Warehouse Shipping: 3-5 working days. Fast Delivery & VAT/Tax Free.
[Ship from UK] For UK customers only, 2-5 days shipping by Royal Mail or UPS
[Ship from Czech] For European countries, ship by DHL or GLS, 3-5 days delivery.
2. DHL Shipping: Suitable for customers worldwide. Will take 5-7 working days.
If your address belongs to remote area, will need to pay remote handling cost. Please remember to leave message if you have any special requirement.
3. Yanwen Express: TAX Free for European Countries. Will take 10-15 working days normally.
4. Order Under 130EUR normally with default shipping standard post, customers can tick for premium delivery to choose ship by DHL.
5. Customers can also choose UPS, TNT FedEx or EMS if you prefer.
Tech Support
There are a total of 6 software have been tested with VNCI NANO equipment to diagnose J1979 compatible vehicles with no issues. The software includes ODIS V9.0, TIS V17.00, HDS V3.102, FORSCAN V2.3.48, PCMFLASH V1.2.0 and SCANMASTER V2.1. All software requires to install the VNCI NANO driver to use. Free download the related software and driver (no password) offered by eobdtool.co.uk engineer.
There are a total of 6 software have been tested with VNCI NANO equipment to diagnose J1979 compatible vehicles with no issues. The software includes ODIS V9.0, TIS V17.00, HDS V3.102, FORSCAN V2.3.48, PCMFLASH V1.2.0 and SCANMASTER V2.1. All software requires to install the VNCI NANO driver to use. Free download the related software and driver (no password) offered by eobdtool.co.uk engineer.
1.Free download VAG ODIS 9.10
:
https://mega.nz/file/aihm0AIT#_YgcOUa9QUxrg92PFo1rK0zU-Gx-Wy_7B2iCC49QiO4
Size: 16.32 GB
Language: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russia, Greece, Chinese
2.Free download Toyota 17.00.020/17.20.013
:
https://mega.nz/file/6ZABzbxS#PNHECjMr1S7mDMGWuOOK-6icrSV5cFsL2FbZONEg01c
Size: 588.9 MB
Language: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
3.Free download HDS HONDA 3.104.024:
https://mega.nz/file/JgtEkb4K#jDs8le68Bz6soLyJ9H7LB061C3_BvbKgnIwA1dp7JzE
Size: 4.06 GB
Language: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese, Chinese
4.Free download JLR SDD 163 :
https://mega.nz/file/DJ4FySzY#n8sa8xFRArey0k8XeK8KAERioOmO7u7knf5DrQHAhmk
Size: 3.01 GB
Language: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
5.Free download Forscan 2.3.48:
https://mega.nz/file/XQ4kAQBI#4CujUR7XKRnQ0_MsXcQvryumnHruPmy9qNdpahqIeYQ
Size: 31.7 MB
Language: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Chinese, Czech, Lithuanian, Slovak, Ukrainian
6.Free download ScanMaster-ELM V2.1:
https://mega.nz/file/PQpynZDD#mNdKmUxh6FHqGUdvb8LQEJgb5Y3_W4X_-I7uXVK1hdo
Size: 16.3 MB
Language: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
7.Free download PCMFlash 1.20 :
https://mega.nz/file/TIw1EBwY#hIclEWBhhU9ByjLgoQrCRG8VRTOb82I0m51oEGyxiPQ
Size: 11.8 MB
Language: English, Russian
8.Free download
VNCI NANO Driver:
https://mega.nz/file/iERnEL7R#KEEKbXzuHx7spOV-3fRz1EkEbJHemANwGjHv1fXq7Bk
Size: 36.8 MB
Operating system recommended:
Win8, Win10, Win11 (32 and 64bit)
DO NOT Use Win7. The reason is that the Win7 system is unstable. Some support installing VNCI NANO Driver manually, but some cannot install successfully.
How to install the software with VNCI J2534 Nano?
Each software needs to select VNCI NANO interface when using, among which the anti-theft function of HDS software needs to change the registry before it can be used. The Volkswagen ODIS software is difficult to install and needs to be solved by the customer. Do not change the installation path of all software during installation. By default, they are installed on the C drive.
For more detailed operation steps, refer to: VNCI J2534 Nano User Manual: Function+ Protocol/Hardware Configuration+ Compatible Software
