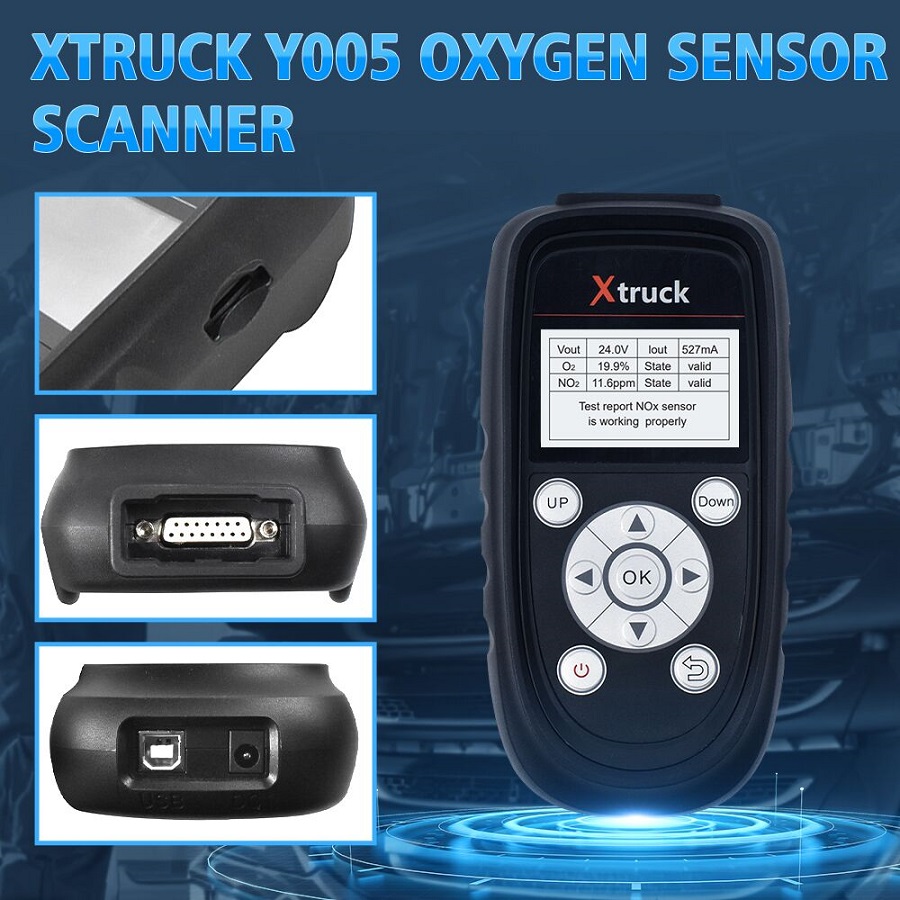

Xtruck Y005 Nitrogen and Oxygen Sensor Detector Truck Beacon Machine Urea Pump Tester Auto Repair Urea Nozzle Pump Diagnostic Tool
Since the failure of CAN line and nitrogen sensor always happens, this tool (Xtruck Y005 Nitrogen and Oxygen Sensor Detector) is designed to help vehicle maintenance engineers to easily and quickly judge the problem of the CAN bus line or module. With nitrogen sensor detector, you can find out if the nitrogen oxygen module is damaged or not.
Product Function:
Detect CAN bus line or module problems
Detect whether the nitrogen oxide module is damaged,
Help the maintenance workers to quickly judge the problem.
How to use it?
1. One end of the main test line is connected to the device, and the other end is connected to the nitrogen and oxygen sensor.
2. Nitrogen and oxygen sensor heating
3. Connect the nitrogen and oxygen sensor, and click the NOx sensor test, choose 24V or 12V NOx sensor test
4. Select the corresponding model
5. When the connection is complete, click the “Go” button, and then enter the test of the nitrogen and oxygen sensor. After 300 seconds, the nitrogen and oxygen concentration and oxygen concentration will be displayed. If the nitrogen and oxygen sensor is damaged, the machine will report the corresponding fault code.
Package Includes
1pc x Main unit
1pc x Power adapter
1pc x Four in one Nitrogen and Oxygen Test line
1pc x DB15 Main Test line
1pc x Device update line
1pc x Cigarette lighter line (male&female)
