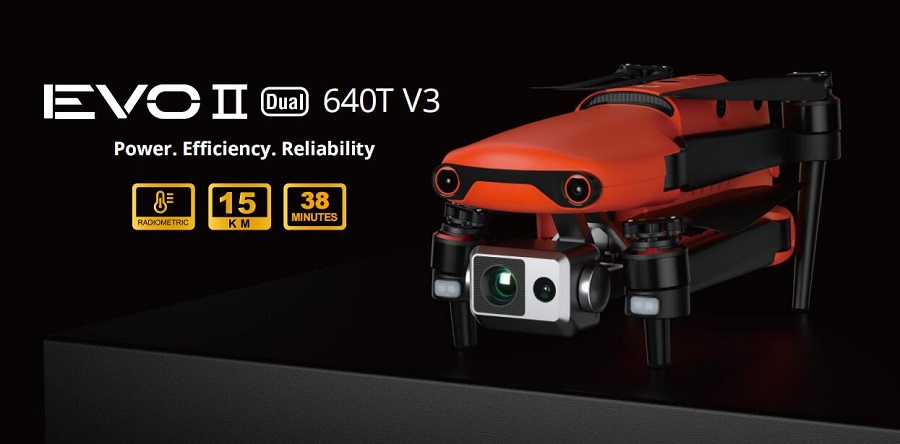

Product Description
Autel EVO II DUAL 640T with the 640x512 sensor provides greater resolution than any camera in its class, enabling pilots to see deep detail in dark environments. It is the most compact and advanced thermal drone equipped with a new generation of thermal sensor.
Autel EVO II Dual Rugged Bundle (640T) Thermal Imaging Sensor 360° Obstacle Avoidance 38 Minute Flight Time

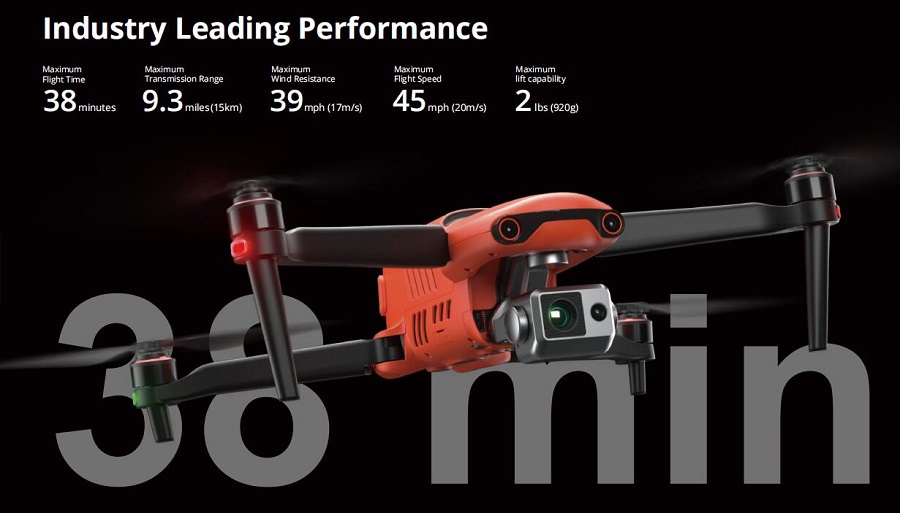

Autel EVO II Dual Rugged Bundle (640T) V3 has the industry leading performance, with 38 minutes maximum flight time, 9.3 miles(15km) maximum transmission Range, 39mph (17m/s) maximum wind resistance, 45 mph (20m/s) maximum flight speed and 2lbs (920g) maximum lift capability.
Autel evo ii 640t Features:
640x512 25Hz New Thermal Imaging Sensor
Equipped with a 640 x 512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easier than ever to observe distant targets. The system uses a new image processing algorithm, making thermal details clearer and more discernible than other options with similar resolution and hardware.

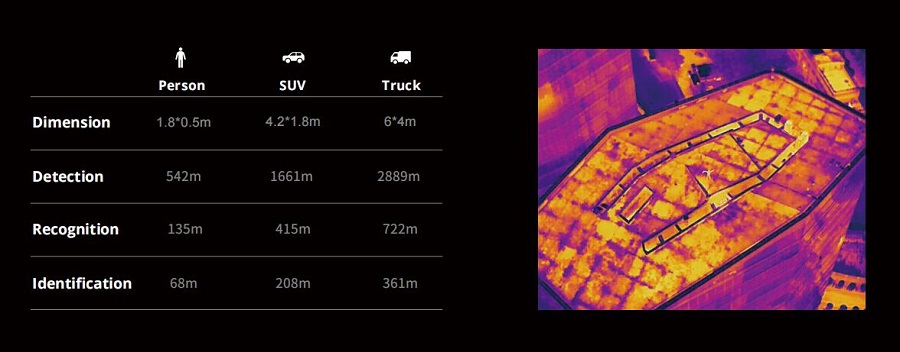

DRI Ranges
See a specific subject's identity, activity, or personal items.
Detection：Detect if an object is present.
Recognition：See what type of object it is (i.e. person, vehicle, airplane).
Identification：Determine subject affiliation and intent.

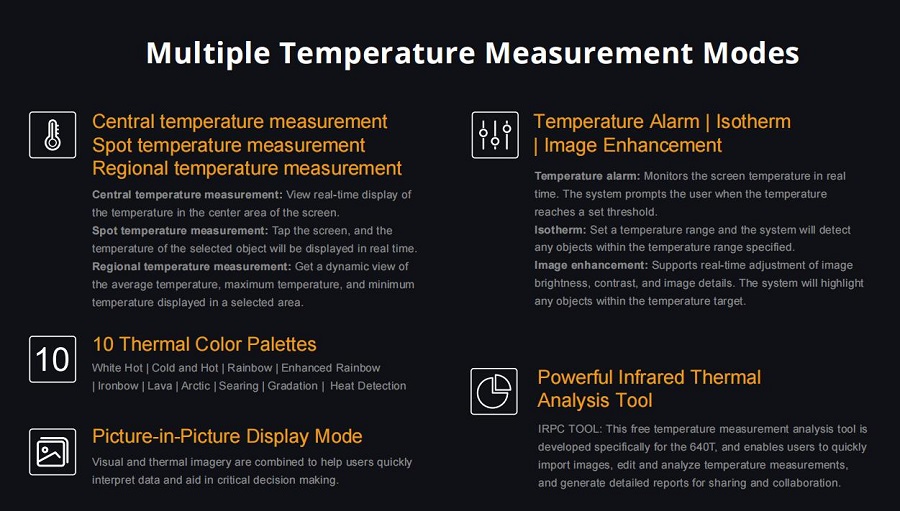

Central temperature measurement: View real-time display of the temperature in the center area of the screen.
Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time.
Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold.
Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified.
Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
10 Thermal Color Palettes
White Hot / Cold and Hot / Rainbow / Enhanced Rainbow / Ironbow / Lava / Arctic / Searing / Gradation / Heat Detection
Picture-in-Picture Display Mode
Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision making.
Powerful Infrared Thermal Analysis Tool
IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.

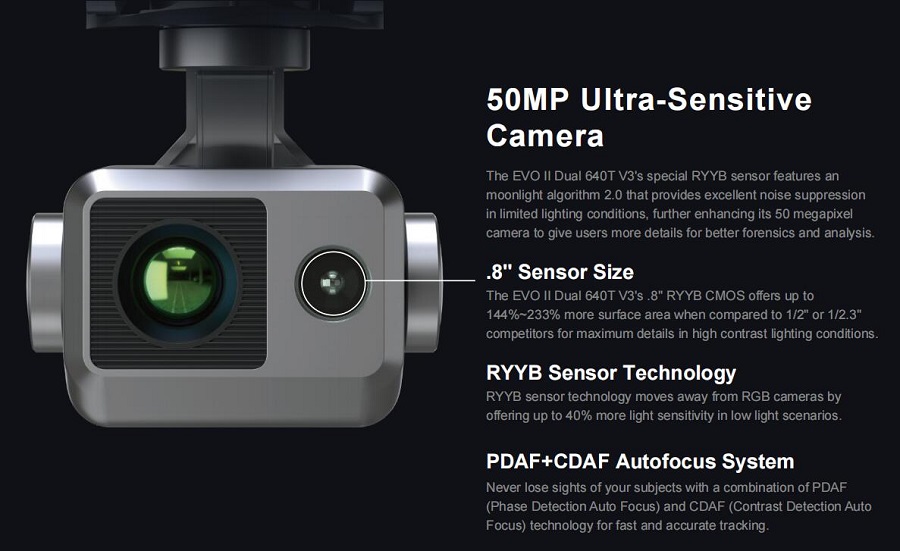

50MP Ultra-Sensitive Camera
.8" Sensor Size
RYYB Sensor Technology
PDAF+CDAF Autofocus System
The EVO II Dual 640T V3's special RYYB sensor features an moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis.
The EVO II Dual 640T V3's .8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high contrast lighting conditions.
RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.
Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.
See the Scene with 16x Digital Zoom
The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely and without detection.
4K HDR for Greater Dynamic Range
4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.

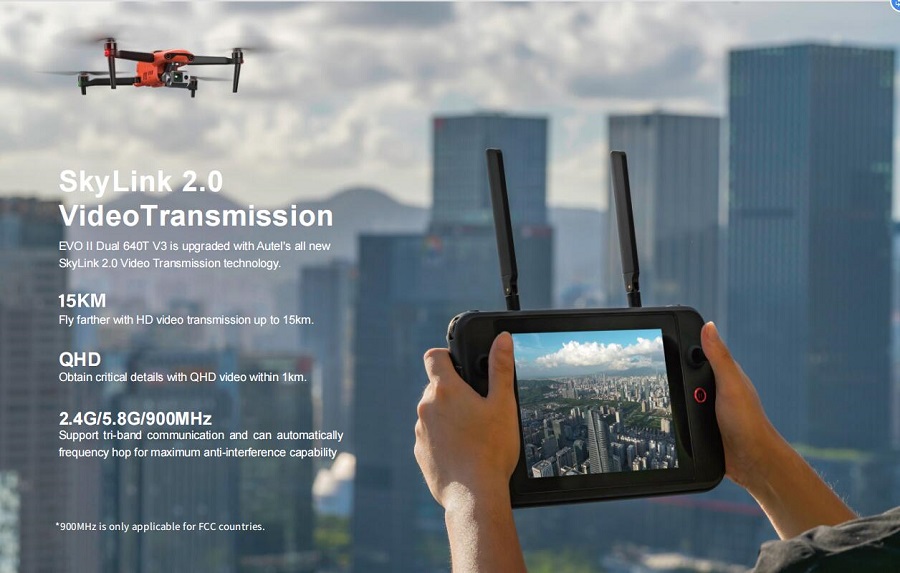

SkyLink 2.0
VideoTransmission
EVO II Dual 640T V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology. Fly farther with HD video transmission up to 15km.
QHD
Obtain critical details with QHD video within 1km.
2.4G/5.8G/900MHz
Support tri-band communication and can automatically frequency hop for maximum anti-interference capability
*900MHz is only applicable for FCC countries.

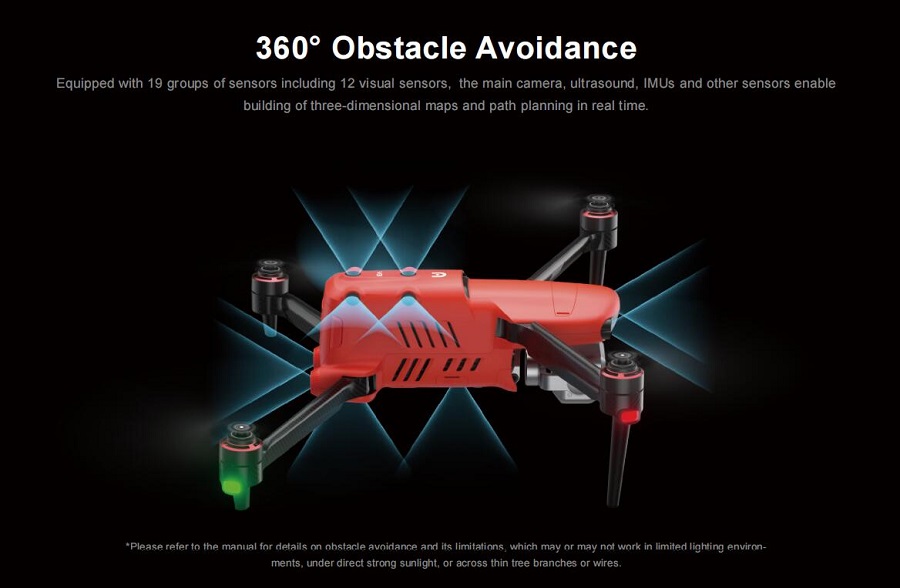

360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.

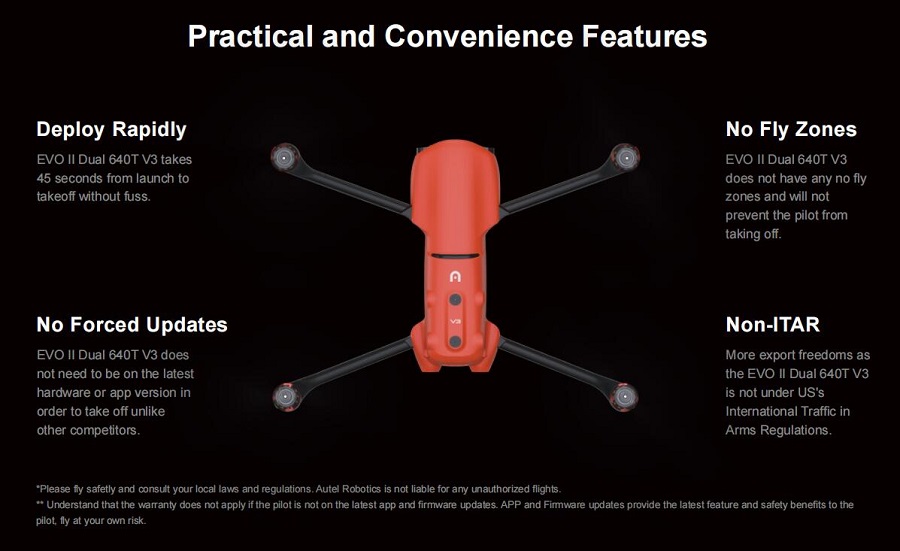

Autel evo ii 640t Practical and Convenience Features
Deploy Rapidly
EVO II Dual 640T V3 takes 45 seconds from launch to takeoff without fuss.
No Fly Zones
EVO II Dual 640T V3 does not have any no fly zones and will not prevent the pilot from taking off.
No Forced Updates
EVO II Dual 640T V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.
Non-ITAR
More export freedoms as the EVO II Dual 640T V3 is not under US's International Traffic in Arms Regulations.
*Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.
*Understand that the warranty does not apply if the pilot is not on the latest app and firmware updates. APP and Firmware updates provide the latest feature and safety benefits to the pilot, fly at your own risk.

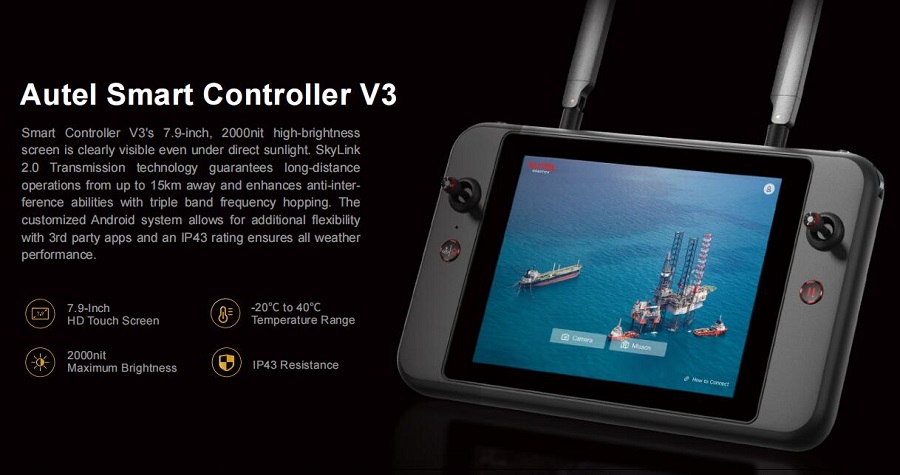

Autel Smart Controller V3
Smart Controller V3's 7.9-inch, 2000nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

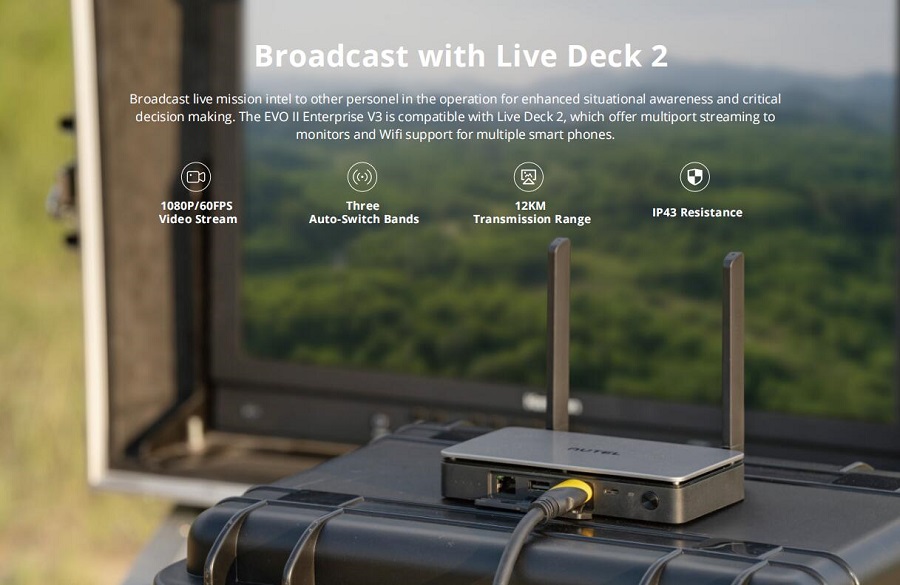

Broadcast with Live Deck 2
Broadcast live mission intel to other personel in the operation for enhanced situational awareness and critical decision making. The EVO II Enterprise V3 is compatible with Live Deck 2, which offer multiport streaming to monitors and Wifi support for multiple smart phones.
1080P/60FPS Video Stream
Three Auto-Switch Bands
12KM Transmission Range
IP43 Resistance

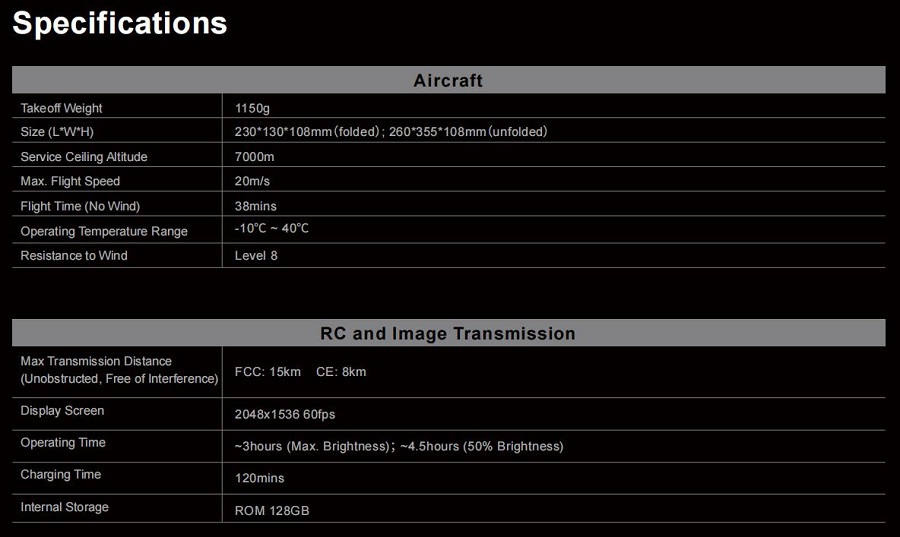

Autel EVO II Dual Rugged Bundle (640T) V3 Specifications:
| Aircraft |
| Takeoff Weight |
1150g |
| Size (L*W*H) |
230*130*108mm（folded）; 260*355*108mm（unfolded） |
| Service Ceiling Altitude |
7000m |
| Max. Flight Speed |
20m/s |
| Flight Time (No Wind) |
38mins |
| Operating Temperature Range |
-10℃ ~ 40℃ |
| Resistance to Wind |
Level 8 |
| RC and Image Transmission |
Max Transmission Distance
(Unobstructed, Free of Interference) |
FCC: 15km CE: 8km |
| Display Screen |
2048x1536 60fps |
| Operating Time |
~3hours (Max. Brightness)；
~4.5hours (50% Brightness) |
| Charging Time |
120mins |
| Internal Storage |
ROM 128GB |

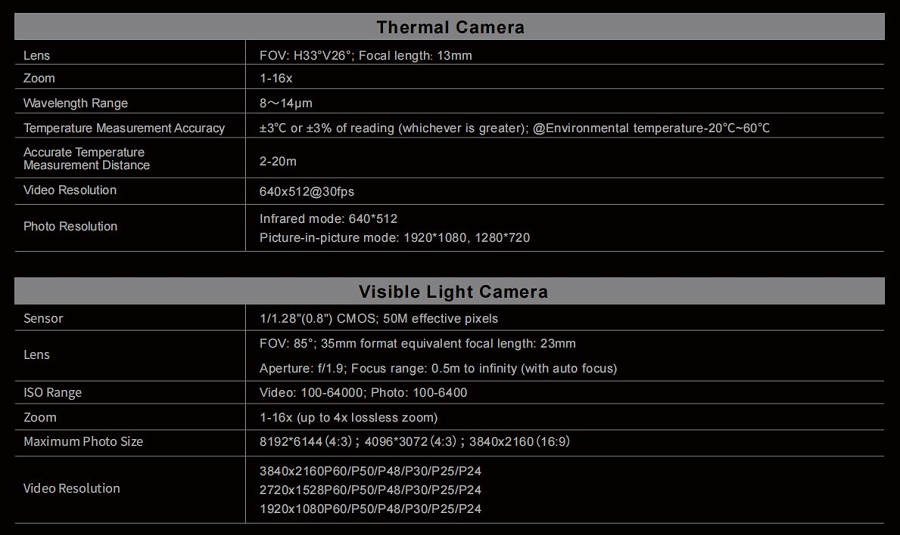

| Thermal Camera |
| Lens |
FOV: H33°V26°; Focal length: 13mm |
| Zoom |
1-16x |
| Wavelength Range |
8～14μm |
| Temperature Measurement Accuracy |
±3℃ or ±3% of reading (whichever is greater); @Environmental temperature-20℃~60℃ |
| Accurate Temperature Measurement Distance |
2-20m |
| Video Resolution |
640x512@30fps |
| Photo Resolution |
Infrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720 |
| Visible Light Camera |
| Sensor |
1/1.28"(0.8") CMOS; 50M effective pixels |
| Lens |
FOV: 85°; 35mm format equivalent focal length: 23mm
Aperture: f/1.9; Focus range: 0.5m to infinity (with auto focus) |
| ISO Range |
Video: 100-64000; Photo: 100-6400 |
| Zoom |
1-16x (up to 4x lossless zoom) |
| Maximum Photo Size |
8192*6144（4:3）； 4096*3072（4:3）； 3840x2160（16:9） |
| Video Resolution |
3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24 |
Package Includes:
1pc x Autel EVO II Dual Rugged Bundle (640T) V3
▲
